The two feeders are controlled by axis cards, guaranteeing speed, quality and precision. The arms are equipped with adjustable grippers with suction cups and venturis. Each gripper is paired with a patented mechanical system that facilitates the installation and removal of cutouts. All magazine settings are assisted by “screw – crank” mechanisms to reduce stalling times.

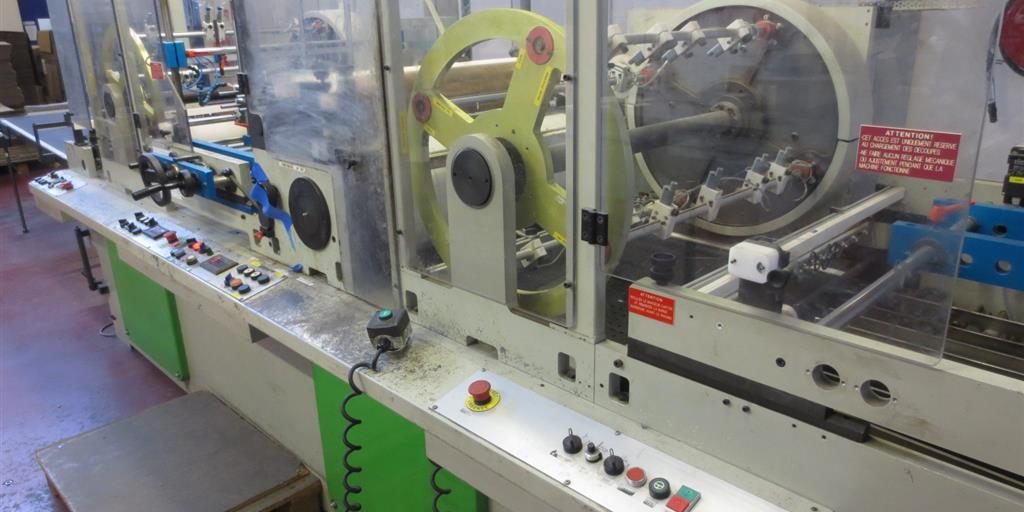

The T-Line machine is equipped with a correction device on the fly. Two cells guarantee the precise removal of the window on the cardboard. This system is also controlled by an axis card which calculates the position deviations and commands the motor to perform the correction.
Speed : 9.000 products/hour
Accuracy : +/- 0,4 mm
Sizes : Maximum length 1020mm – Maximum width 1100mm (other dimensions on request)
